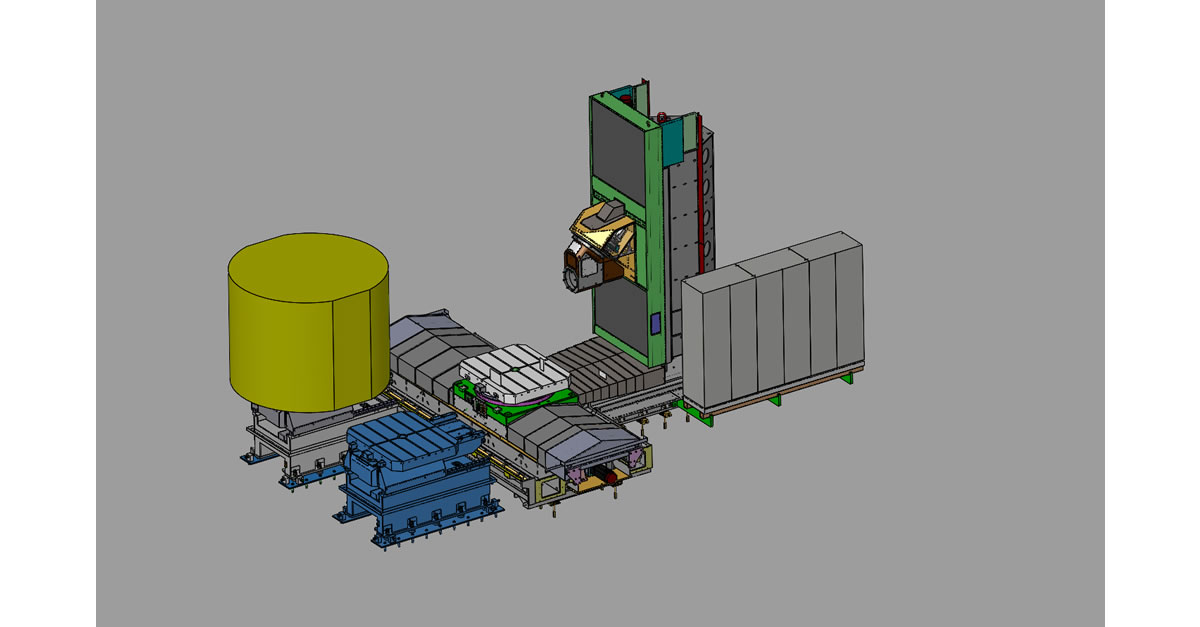

The machine is made entirely of electro-welded steel, designed using a 3D software and verified through FEM analysis.
All structures are constructed so as to provide maximum structural rigidity.
The standard numerical control is Fanuc, on demand is possible to install other controls.
Ideal machine for those who need to carry out both heavy and precision machining in the Oil & Gas, Petrochemical, Naval and Energy sectors. It is able to mill and drill on any type of material in particular alloy steels, duplex, super duplex.
The machine can be configured in different versions:

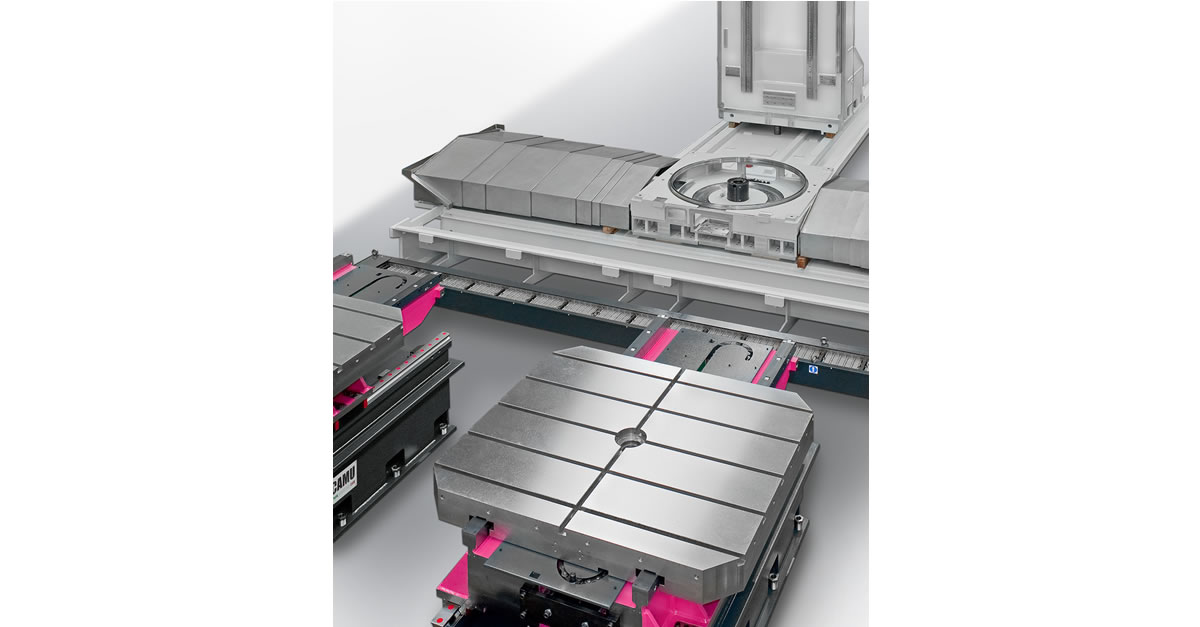

- Workpiece table can be fixed, rotating or pallet changer table with 2 or more stations.
- Chain tool magazine with 32 and 60 positions or with a tower with 120 to 200 positions.

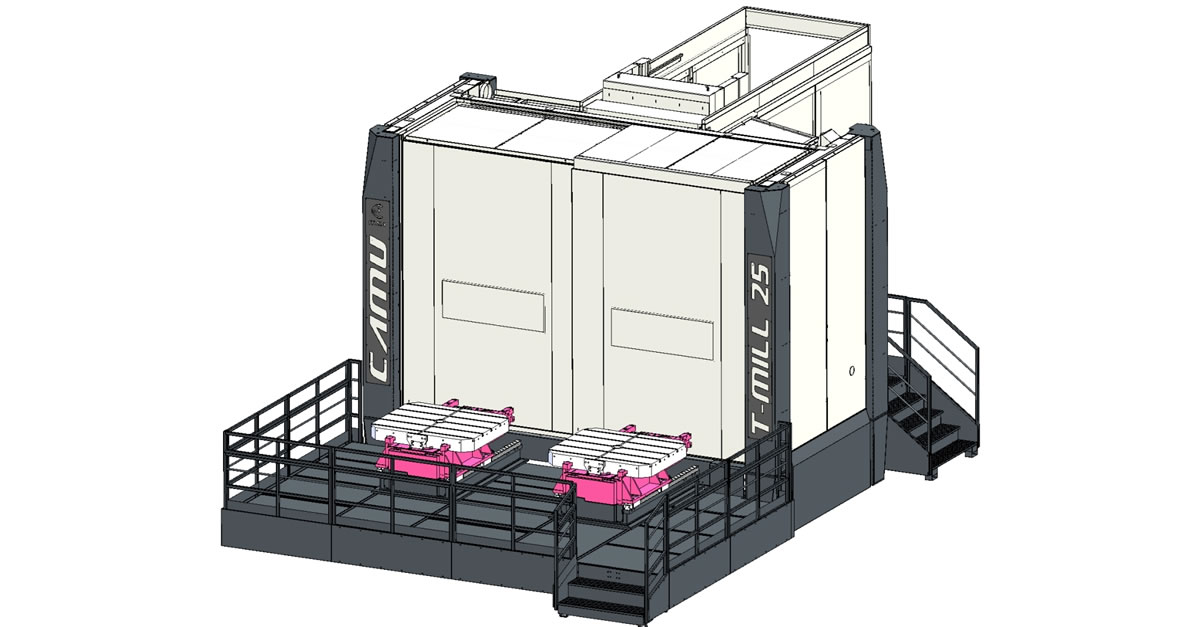

- Standard perimeter fairing or integral box with automatic doors and fume extraction system.
TECHNICAL SPECIFICATIONS

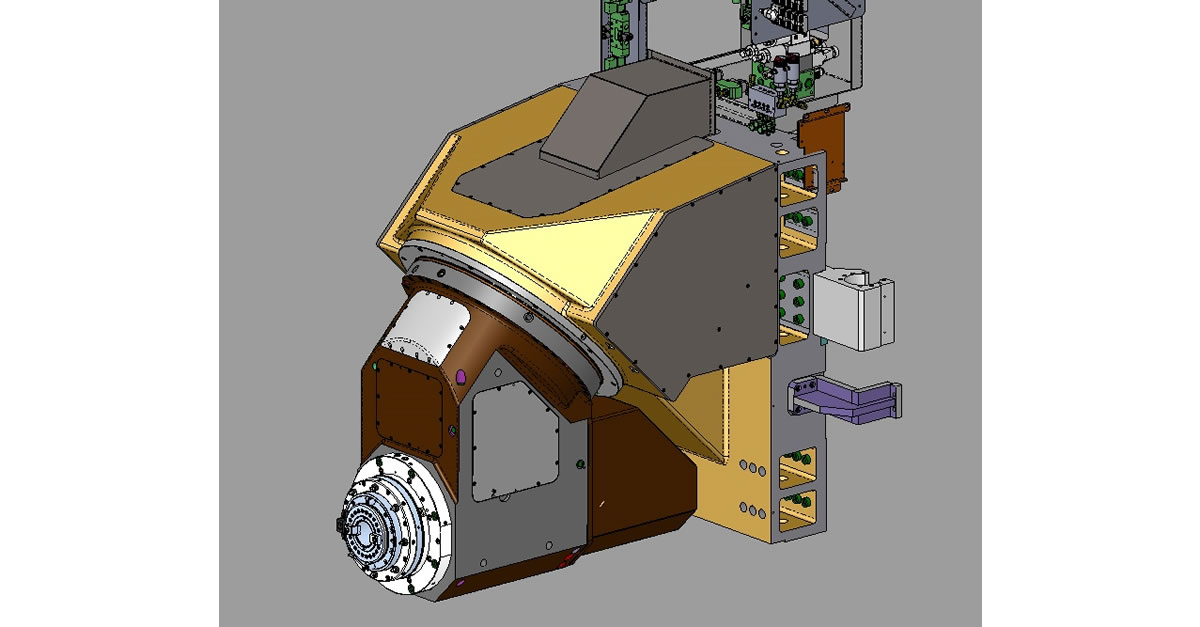

| WORKING CAPACITIES: | 25 | 25 H | U.M. |
| Max. swing diameter Diametro massimo pezzo in rotazione |
⌀ 2500 | mm | |
| Max. distance from table to spindle nose (vertical head) Distanza massima tra tavola e naso mandrino |
1325 | 1825 | mm |
| Max. workpiece weight Peso massimo del pezzo |
10000 | 10000 | Kg |
| Total machine weight Peso totale della macchina |
30000 | 35000 | Kg |
| WORKING AXES: | |||
| X-axis longitudinal travel (Column) Corsa longitudinale asse X |
2600 | mm | |
| Z-axis transverse travel (Ram) Corsa trasversale montante asse Z |
2300 | mm | |
| Y-axis vertical travel (Head) Corsa verticale testa asse Y |
1500 | 2000 | mm |
| Rapid feedrate Avanzamento rapido assi |
40000 | mm/min | |
| ROTARY TABLE (B AXIS): | |||
| Table dimensions Dimensione tavola |
1250X1250 | 1500X1500 | mm |
| Working torque in contouring Coppia di lavoro in contornatura |
7000 | Nm | |
| Max. rotation speed Velocità massima di rotazione |
10 | rpm | |
| AUTOMATIC PALLET CHANGER (APC): | |||
| Working pallet size Dimensione pallet di lavoro |
1250X1250 | 1500X1500 | mm |
| Positioning repeatability Ripetibilità posizionamento |
+/- 0.005 | mm | |
| Pallet change speed Velocità cambio pallet |
55 | sec | |
| Number of pallets Numero di pallet |
2 | Nr | |
| MILLING SPINDLE UNIT: | |||
| Spindle motor power Potenza motore mandrino |
65 | 105 | kW |
| Max. torque Coppia massima |
800 | 1050 | Nm |
| Max. spindle speed Velocità massima di rotazione |
4500/6000/8000 | rpm | |
| Spindle taper Tipologia mandrino |
50 | 50 BIG PLUS | ISO |
| Tool shank standard Tipologia attacco |
69871 | DIN | |
| POWER SUPPLY: | |||
| Voltage Tensione |
415 +/-10% | V | |
| Phase Fase |
3 | Nr | |
| Frequency Frequenza |
50 +/-5% | Hz | |
